What Does a Water Softener Installation Kit Include?
Hard water is common across London, and many homeowners in Fulham, Hammersmith, Chelsea and surrounding areas look at water softeners when limescale starts affecting taps, shower screens, kettles, washing machines and dishwashers. A water softener can be a useful upgrade, but the installation depends on more than the unit itself. At Citywide Plumbers, customers often ask what actually comes inside a kit and whether it is enough for a safe, reliable Water Softener Installation in London.
A water softener installation kit usually includes the core connection parts needed to link the softener to the mains water pipework. This can include a bypass valve, inlet and outlet hoses, isolation valves, fittings, drain tubing, an overflow pipe, clips and sometimes a hardness test strip or basic instructions. However, the exact contents vary depending on the manufacturer, pipe size and the type of softener being installed.
The most important point is that a kit is not automatically a complete installation solution for every UK property. London homes can have different pipe sizes, older copper pipework, plastic pipework, restricted cupboard space, unusual stopcock positions and different drainage options. This guide explains each part of a water softener kit, what it does and what homeowners should check before installation begins.
Citywide Plumbers Guide

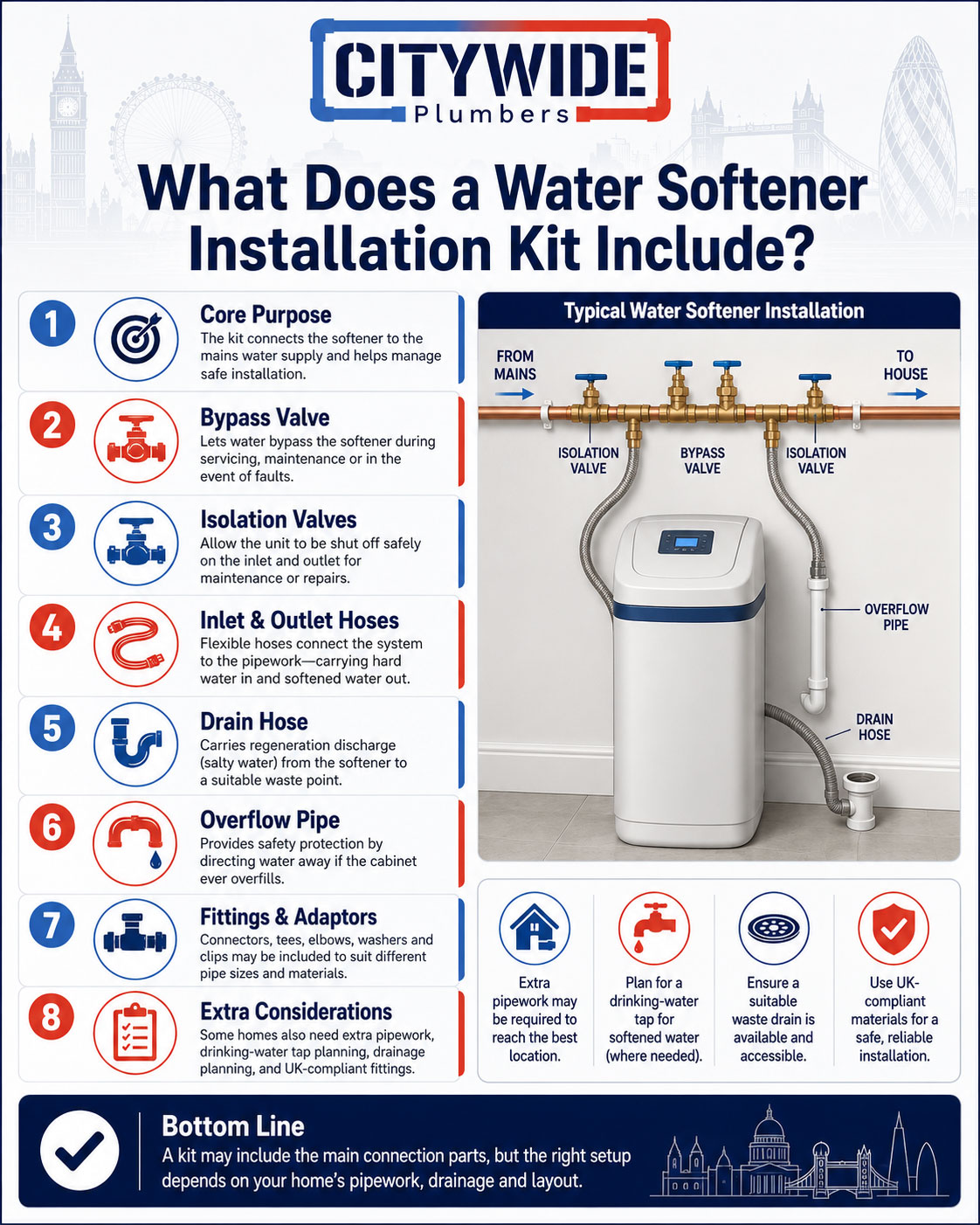

Water Softener Installation Kit: Visual Breakdown
This infographic shows the main parts usually found in a water softener installation kit, including bypass valves, isolation valves, inlet and outlet hoses, drain hose, overflow pipe, fittings and extra planning points.
Click the infographic to enlarge
What Is a Water Softener Installation Kit?
A water softener installation kit is a collection of plumbing parts designed to help connect a softener to the property’s water supply. The kit acts as the link between the incoming mains water pipe and the water softener unit. It helps direct hard water into the softener, send softened water back into the home and provide a safe way to isolate, bypass or service the system later.
In a typical UK home, the water softener is installed after the main stopcock and close to the incoming mains supply. This is why many softeners are fitted under the kitchen sink, in a utility room, in a garage or inside a service cupboard. The installation kit helps make this connection neater and more practical, but it still needs to match the layout of the property.
Some kits are designed for standard 15mm domestic pipework, while others are made for larger 22mm or 28mm pipework. Larger homes, higher-flow systems and certain installations may need full-bore fittings to avoid unnecessary flow restriction. Before buying a kit, it is important to confirm the pipe size, available space, water pressure and the distance between the pipework and the softener.
- Connects the water softener to the mains supply
- Helps direct hard water into the softener
- Returns softened water back to the property
- Allows isolation or bypass for servicing
- Supports drainage and overflow arrangements
- Must suit the property’s pipework and layout
Bypass Valve and Isolation Valves
The bypass valve is one of the most important items in a water softener installation kit. Its job is to allow water to go around the softener when needed. This means the property can still have water if the softener needs servicing, repair, salt cleaning, resin inspection or replacement in the future. Without a bypass, maintenance becomes more difficult and the home may need to be temporarily without water while work is carried out.
Many kits include a bypass set with valves that control the direction of water. In normal use, hard water enters the softener and softened water returns to the plumbing system. When bypass mode is selected, water flows around the softener instead. This is especially useful if the unit develops a fault, if the homeowner wants to isolate it, or if a plumber needs to inspect the system.
Isolation valves are also essential. These valves allow the installer or plumber to shut off water to the softener without turning off every supply point in the property. A good installation should allow safe access to valves, not hide them behind the unit or place them where they cannot be reached. In smaller London kitchens, this planning matters because units are often installed in tight cupboards.
- Bypass valves allow water to flow around the unit
- Isolation valves help shut off the softener safely
- Accessible valves make servicing easier
- Good valve planning reduces future disruption
- Bypass setups help during maintenance or faults
- Valves should be suitable for mains water pressure
Inlet and Outlet Hoses
Most water softener installation kits include two main hoses: one for the hard-water inlet and one for the softened-water outlet. The inlet hose carries mains water into the softener. The outlet hose carries softened water back into the home’s pipework. These hoses are often flexible, which makes installation easier in cupboards, under sinks and tight utility areas.
The quality and suitability of the hoses are important. Hoses used on drinking-water systems should be suitable for potable water and designed for the pressure and temperature conditions of the installation. They should not be twisted, kinked, stretched or exposed to damage. If a hose is too short or bent too sharply, it may restrict flow or place stress on the connection points.
Hose length should be planned carefully. A hose that is too long can look untidy and may be harder to support. A hose that is too short can pull against fittings. A professional plumber will usually check the manufacturer’s instructions, the available cupboard space and the final position of the unit before confirming the best hose arrangement.
| Kit Component |
What It Does |
Why It Matters |
| Inlet Hose |
Carries hard mains water into the softener |
Needs correct pressure rating and clean connection |
| Outlet Hose |
Returns softened water to the property |
Must avoid kinks, sharp bends and poor support |
| Bypass Valve |
Allows water to flow around the unit |
Helps with maintenance, servicing and fault isolation |
| Drain Tube |
Carries regeneration discharge to waste |
Must be routed safely to avoid leaks and backflow risk |
| Overflow Pipe |
Provides a route if the cabinet overfills |
Should terminate safely and visibly where required |
Drain Hose and Overflow Pipe
A salt-based water softener needs a drain connection because the unit periodically regenerates. During regeneration, water is used to flush the resin bed and discharge the waste water. The drain hose carries this discharge to a suitable waste point. This part of the kit is often overlooked, but it is critical to the long-term safety and reliability of the installation.
The drain hose must be routed correctly. It should not be pushed loosely into a waste pipe without considering backflow protection, air gaps or manufacturer requirements. A poor drain connection can lead to leaks, odours, contamination risk or discharge problems. The hose should also be secured so it cannot move, pull out or become crushed behind kitchen units.
An overflow pipe may also be included or required. This provides a safe route if water inside the softener cabinet rises too high. Overflow arrangements should not be hidden where a problem could go unnoticed for a long time. In many homes, a visible or properly routed overflow helps alert the homeowner if something is wrong.
- Drain hoses carry regeneration water to waste
- Drain routes must be secure and suitable
- Backflow protection should be considered
- Overflow pipes help protect against overfilling
- Loose drain hoses can cause leaks or odours
- Waste connections should follow manufacturer guidance
Fittings, Adaptors and Connectors
A water softener kit may include tees, elbows, compression fittings, push-fit connectors, threaded adaptors, washers, clips and sealing parts. These components make it possible to connect the kit to existing pipework. The exact parts needed depend on whether the property has copper pipe, plastic pipe, metric pipe sizes or previous alterations around the stopcock.
London properties often have mixed plumbing. A Fulham home may have older copper pipework near the mains stopcock, newer plastic pipework from a kitchen renovation, and additional connections for appliances or filters. A standard kit may not include every adaptor needed for that type of layout. This is why measuring pipe size and checking material before installation is so important.
Connectors must be fitted cleanly and supported properly. Poorly cut pipe, uneven surfaces, over-tightened compression fittings or mismatched adaptors can all lead to leaks. A good installation should look neat, but it should also be easy to inspect and maintain. The goal is not simply to make the softener fit; it is to create a safe and serviceable connection.
- Tees and elbows help route pipework neatly
- Compression or push-fit connectors must match the pipe
- Washers and seals help prevent leaks
- Pipe clips support hoses and pipework
- Adaptors may be needed for older or mixed systems
- All fittings should be suitable for potable water
WRAS, Water Regulations and Suitable Components
When a water softener is connected to a UK mains water system, the fittings and installation should be suitable for the water supply. Components should be designed for the correct pressure, should not contaminate the water and should be installed in a way that prevents leakage, damage and backflow risk. This is why approved or regulation-compliant fittings are important.
WRAS-approved components, or products that meet appropriate UK water fitting requirements, provide more confidence that the materials are suitable for use with mains water. This can apply to hoses, valves, bypass sets, fittings and other parts that carry or receive water from the public supply. However, approved components still need to be installed correctly. A good part fitted badly can still create problems.
Backflow protection is particularly important around drain and waste arrangements. Backflow happens when water moves in the wrong direction and may allow contamination to enter the clean water supply. A water softener installation must be planned so that waste discharge and overflow routes do not compromise the safety of the mains supply.
Does the Kit Include a Drinking Water Tap?
Many standard water softener kits do not include a separate drinking-water tap. They may include the parts needed to connect the softener, but the drinking-water arrangement is usually planned separately. In many UK homes, one unsoftened cold-water supply is left at the kitchen sink for drinking and cooking. This is especially common with salt-regenerated ion-exchange softeners.
Some homeowners choose a separate small drinking-water tap. Others use a three-way kitchen tap that provides hot, softened cold and unsoftened cold water through one fitting. The right option depends on the kitchen layout, worktop space, sink position and homeowner preference. If a kitchen is being renovated at the same time, this is a good moment to plan the tap properly.
A kit may include enough fittings to bypass part of the supply, but it may not include everything needed to create a separate drinking-water line. This is one of the reasons a site check is useful. The plumber can decide whether the existing cold tap can remain unsoftened or whether extra pipework is needed.
- Standard kits may not include a drinking-water tap
- Many homes keep one unsoftened kitchen cold tap
- Three-way taps can combine different water supplies
- Extra pipework may be needed for drinking water
- Kitchen layout affects the best tap option
- Planning this early prevents later changes
Tools and Extra Materials Not Always Included
A water softener kit may include fittings and hoses, but it does not always include the tools or extra materials needed for the job. A professional installation may require pipe cutters, adjustable spanners, pipe inserts, clips, sealants, wall fixings, lagging, additional copper or plastic pipe, waste adaptors and pressure checks. The need for extra parts depends on the home.
For example, a softener installed under a kitchen sink may need pipe rerouting to leave enough space for the unit and salt access. A garage installation may need frost protection and longer pipe runs. A utility cupboard may need a tidier valve arrangement so the stopcock remains accessible. These practical details are often not covered by a standard box kit.
Homeowners should also remember that a kit does not test water pressure, confirm flow rate or assess the condition of existing pipework. If old valves are stiff, if the stopcock does not close properly or if the pipework is poorly supported, extra plumbing work may be required before the softener can be installed safely.
- Pipe cutters and spanners are not usually included
- Extra pipework may be needed for neat routing
- Waste adaptors may depend on the property layout
- Pipe clips and support may need adding
- Older stopcocks may need attention first
- Pressure and flow checks should be considered
Common Mistakes When Buying a Water Softener Kit
One common mistake is assuming every kit fits every home. Pipe sizes, available space, valve positions and drainage routes vary. A kit that is suitable for one property may not be suitable for another. This is especially true in London homes where kitchens and utility spaces may have been altered over many years.
Another mistake is ignoring the bypass setup. A water softener should be serviceable. If it cannot be isolated or bypassed easily, future maintenance becomes more difficult. Homeowners may also overlook salt access. A unit squeezed into a cupboard might fit on day one, but it may be awkward to refill or inspect later.
Drainage is another area where mistakes happen. Regeneration discharge and overflow routes need proper planning. Pushing a hose into the nearest waste point without considering security, air gaps, backflow and access can create long-term problems. A clean installation should be practical, safe and easy to maintain.
- Buying before checking pipe size
- Not confirming water pressure or flow requirements
- Forgetting about bypass access
- Choosing hoses that are too short or badly routed
- Ignoring drain and overflow planning
- Leaving no room for salt refilling
Final Advice for London and Fulham Homes
A water softener installation kit can include many useful parts, but it should not be treated as a universal solution. The main items are usually the bypass valve, inlet and outlet hoses, isolation valves, connectors, drain hose and overflow pipe. Depending on the property, extra fittings, pipework, drainage parts or drinking-water tap planning may also be needed.
For London homeowners, the best approach is to check the property before buying or fitting the kit. This means looking at the incoming mains supply, stopcock access, cupboard space, pipe size, pressure, drainage route, kitchen tap arrangement and long-term maintenance access. A good installation should reduce limescale problems while keeping the plumbing safe, neat and serviceable.
If you are planning WATER SOFTENER INSTALLATION KITS IN LONDON, professional advice can help you avoid the common issues that come from using the wrong kit or missing an important fitting. For support with water softener pipework, bypass valves, drainage, drinking-water tap planning and installation in Fulham and across London, Citywide Plumbers can help you choose a practical setup for your home.
